Liberty Quarter Length Bed Rail
Liberty Quarter Length Bed Rail
The Quarter Rail, approximately 18 inches in length when mounted on the Patriot™ bed, can be used as a head assist, head rail, or foot rail. This rail provides minimal rail coverage and gives assistance when entering or exiting the bed. The Quarter Rail’s non-telescoping inner and outer tubes overlap in conjunction with the Patriot™ mounting system, resulting in a very sturdy rail. Designed to offer added protection, the Lumex® Liberty Rails follow the FDA Hospital Bed System Dimensional Guidance to Reduce Entrapment and the Hospital Bed Safety Workgroup and FDA Dimensional Test Methods for Bed System Zones 1-4 to reduce bed entrapment.
Features:
- Improved rail design decreases the spacing between the crossbars, thus reducing the risk of entrapment
- New bed rail length closes open areas that can occur during full bed articulation

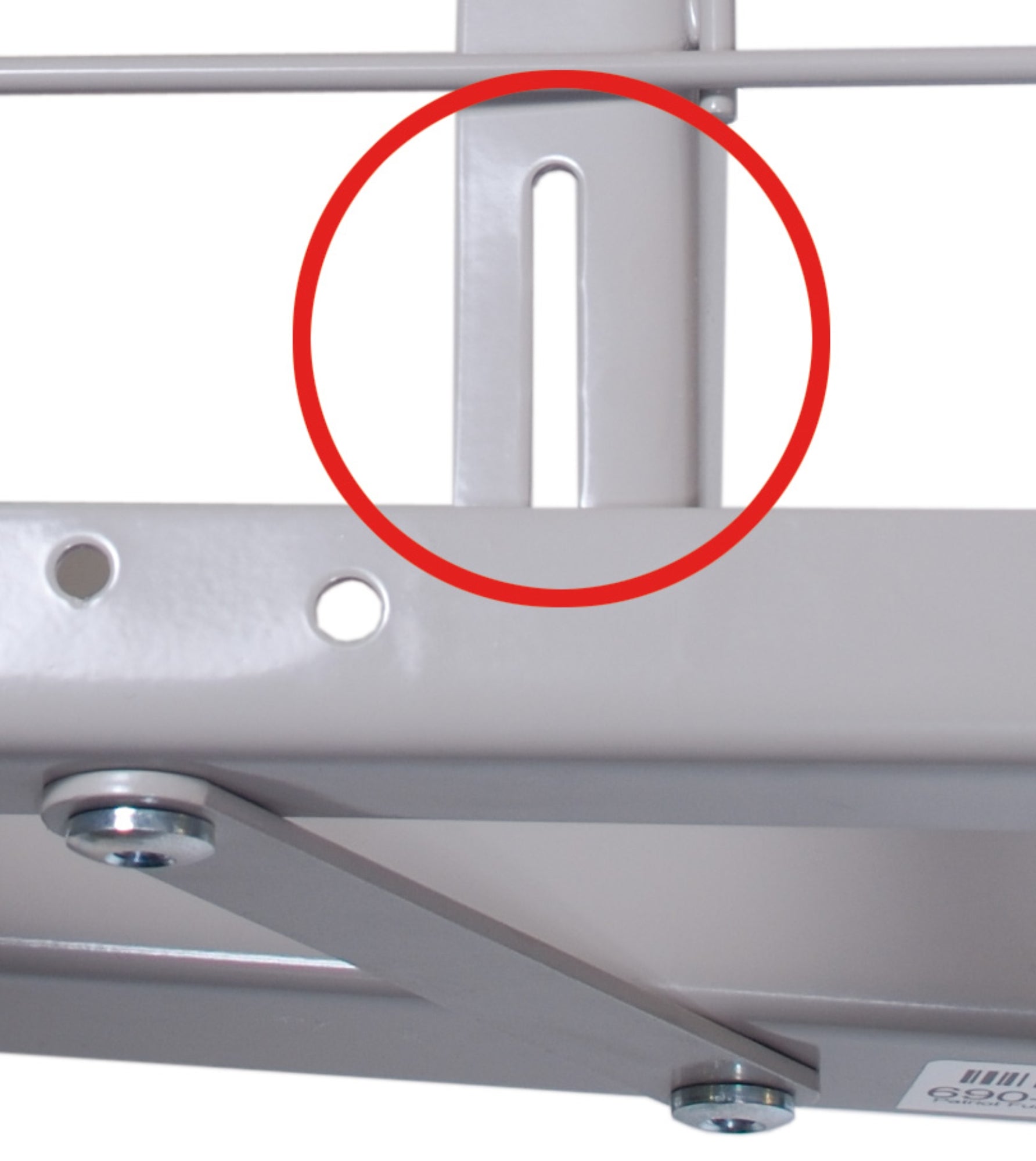

- Rails now mount in fixed patent pending rail slots on Patriot™ bed deck to prevent sliding and moving — easy installation saves delivery and setup time and ensures proper rail placement
- Spring-loaded, self-adjusting crossbraces feature safety tabs that prevent accidental disengagement when bumped or during application of side pressure
- Patriot™ Liberty Bed Rails have been tested to the highest Medical Bed System standards
- Designed to be used specifically with the Patriot™ and WhisperLite™ II full-electric beds that are commonly used as standard-height or low beds
- Heavy-duty steel construction
- Rails are powder-coated with an environmentally-friendly, long-lasting hammertone finish and secure gripping surface
- Tool-free installation
- The Quarter Rail can be mounted on the bed’s foot and the GF6590B-1 mounted on the bed’s head to create the Patriot™ split rail system.
- 3 Year Limited Warranty
- Designed to meet the requirements of HCPCS E0310
Specifications
| Overall length: | (full extension) 18" |
| Overall height: | 13.5" |
| Product Weight: | 12.75 lb |
Specifications are subject to change without notice.
The information provided herein regarding recommended usage is in fact a recommendation. Please consult your healthcare professional for proper guidance and selection of homecare bed rails to best suit intended user needs.
